When you’re deep into benchmarking or testing thermal efficiency on an Intel-based system, Intel Power Gadget often shows up as a top recommendation. It’s lightweight, visual, and officially developed by Intel, but one question still lingers: How accurate is Intel Power Gadget tool, really?
If you’ve used this utility and felt unsure about whether the power and temperature readings reflect reality, you’re not alone.
In this guide, we dig into how this tool works, how much you can trust its data, and what its limitations are based on both technical documentation and hands-on comparisons.

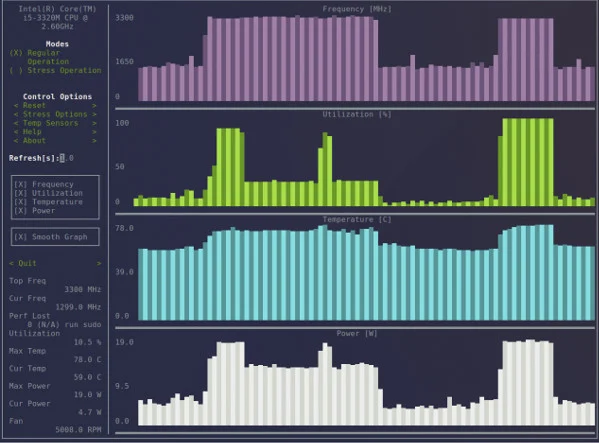

What does Intel Power Gagdet actually track?
Intel Power Gadget is a software monitoring utility that reports live telemetry from Intel processors. It pulls data from internal CPU sensors via Intel’s EnergyLib API and RAPL (Running Average Power Limit). Here’s what it provides:
- Power Consumption—Total package power in watts
- CPU Frequency—Per-core clock speeds in GHz
- Temperature—per-core or average CPU temperature
- CPU Utilization—Load percentage over time
These values are displayed in a real-time graph, making the tool easy to use for monitoring CPU behavior under stress or during idle phases.
How accurate are Intel Power Gadget’s power readings?
Intel Power Gadget is reasonably accurate for CPU-only measurements, particularly when comparing its readings to those from onboard sensors or third-party software like HWInfo. Tests have shown that its CPU package power estimates fall within a 5–10% margin of error, compared to high-end external tools like Powenetics or digital multimeter systems.
However, it’s important to understand that these are estimated power values calculated based on Intel’s power models. Intel Power Gadget doesn’t directly measure electrical current in real-time—it interprets usage data based on internal CPU performance counters. This makes it fairly consistent, but not flawless.

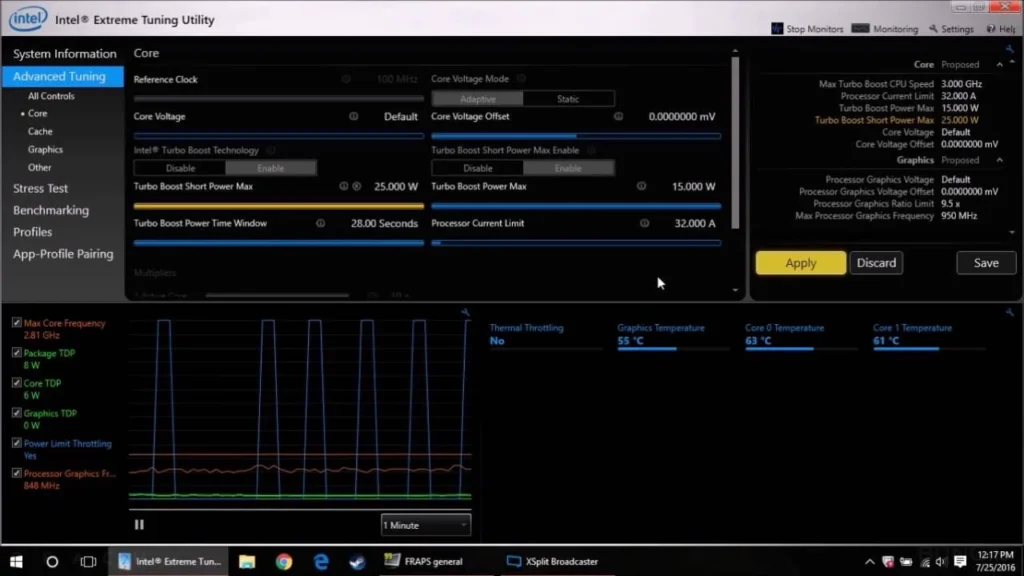

What are Intel Power Gadget’s known limitations?
While the tool is efficient and easy to use, it comes with a few caveats:
- CPU-only focus: It does not measure GPU, RAM, motherboard, or total system power.
- Not always accurate during transient loads: Short spikes in CPU usage (like turbo bursts) may not be captured accurately.
- No data for AMD or Apple Silicon: Only Intel CPUs are supported.
- Limited insight for overclocked/undervolted systems: BIOS or manual voltage tweaks can throw off readings.
This means the tool is excellent for analyzing trends and workload behaviors on Intel CPUs—but should not be used in isolation for full system diagnostics.
How does Intel Power Gadget compare with other monitoring tools?
Here’s how Intel Power Gadget stacks up against other popular power monitoring options:
| Tool | Measures CPU Power | System-Wide Power | Real-Time Graphs | Accuracy |
| Intel Power Gadget | Yes (Intel only) | No | Yes | Good (±5–10%) |
| HWInfo64 | Yes | Partial (with motherboard support) | No | Very Good |
| Powenetics | Yes (via hardware) | Yes | Yes | Excellent |
| Kill-A-Watt | No | Yes (wall power) | No | High (for full system) |
Intel Power Gadget is best used as a CPU-level analysis tool, especially on laptops and desktops where external power meters aren’t feasible.
Can you rely on its temperature and frequency readings?
Intel Power Gadget is highly accurate when it comes to temperature and frequency monitoring. These values are pulled directly from the CPU’s Digital Thermal Sensors (DTS) and internal clock controls, so they are not estimates but actual measurements.
In fact, thermal engineers and laptop reviewers often use Intel Power Gadget as a primary source when logging CPU thermals during stress testing, especially on Intel-based macOS systems and ultrabooks.
Why are Intel Power Gadget readings different from wall power meters?
The main reason is the scope of measurement. Intel Power Gadget only tracks CPU package power, whereas wall meters like Kill-A-Watt measure total system draw, including the GPU, storage, memory, cooling fans, and even power supply losses. So naturally, wall power readings will be significantly higher.
It’s important not to confuse the two. Use Intel Power Gadget when you’re trying to understand CPU performance efficiency, not total energy use.

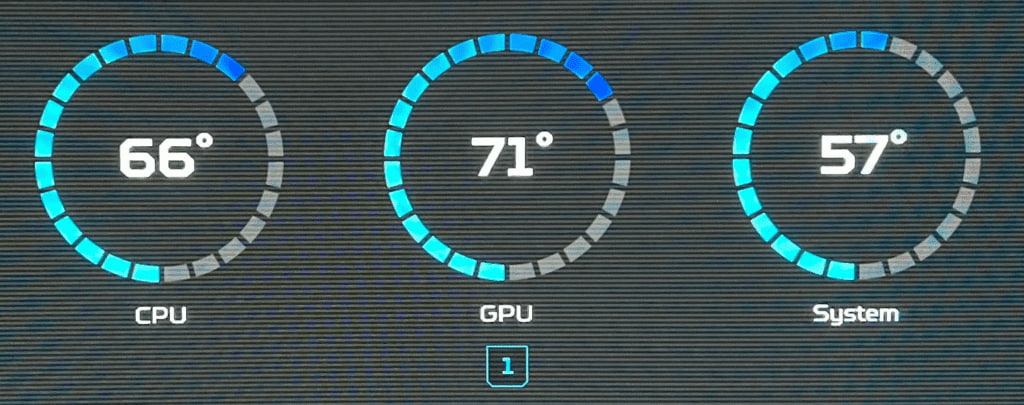

Is Intel Power Gadget reliable for thermal monitoring?
Yes, its temperature readings come directly from the CPU’s digital thermal sensors (DTS).
You can trust it for:
- Tracking thermal throttling during gaming or stress tests
- Identifying hot spots under load
- Verifying cooling system efficiency
Tip: For better insights, compare Intel Power Gadget data with tools like HWInfo64 for granular core-level temperature breakdowns.
Does Intel Power Gadget show system-wide power usage?
This is a major limitation.
Intel Power Gadget only monitors the CPU package. It does not include:
- GPU (unless it’s an Intel iGPU)
- Memory (RAM)
- SSDs, fans, motherboard draw
- PSU losses or total wall power
So if you’re trying to analyze full system power usage, you’ll need to pair this with tools like:
| Tool | Purpose | Accuracy |
| Kill-A-Watt Meter | Wall socket power (system-wide) | High |
| Powenetics | Multichannel real-time logging | Very high |
| Corsair iCUE / ASUS AI Suite | PSU and motherboard sensors | Moderate to high |
Why do some users report different power readings?
Several reasons:
- BIOS under volting can throw off readings
- Intel Power Gadget may under-report fast spikes (under 100ms)
- If you’re running on macOS, macOS sandboxing can reduce data granularity
- Not all CPUs support full telemetry, especially older Intel chips
If you’re overclocking or using non-default power profiles, expect deviations.
Is Intel Power Gadget better than third-party tools?
Intel Power Gadget is useful—but it’s not always the most detailed. Here’s how it compares:
| Feature | Intel Power Gadget | HWInfo64 | Open Hardware Monitor |
| CPU Power (PKG) | ✅ Accurate | ✅ Accurate | ✅ Decent |
| GPU Support | ❌ Intel only | ✅ All GPUs | ❌ Limited |
| VRM Monitoring | ❌ | ✅ | ❌ |
| Logging Options | Basic | Advanced | Moderate |
| Real-Time Graphs | ✅ Yes | ❌ Table view | ❌ Minimal UI |
For professional workloads or system builders, HWInfo64 or AIDA64 offer more control. But Intel Power Gadget remains the simplest official option for CPU-only stats.
Read More: What is an Alexa Gadget?
When should you avoid using Intel Power Gadget?
You should avoid depending solely on Intel Power Gadget if you need:
- Full power analysis of all components
- Precise energy efficiency metrics for PSU or data center workloads
- Verification of performance in custom loop overclocking setups
- Compatibility with AMD or Apple Silicon processors
In such cases, external hardware sensors, platform-specific utilities, or tools like HWInfo64 are better suited.
How can I increase accuracy when using Intel Power Gadget?
- Close background apps before testing
- Use a cool, consistent thermal environment
- Keep your Intel chipset drivers updated
- Combine it with external monitoring tools for cross-reference
- Avoid usage during background updates or macOS Spotlight indexing (on Mac)
What do developers and reviewers say about its accuracy?
- AnandTech and NotebookCheck often rely on Intel Power Gadget during battery and thermal benchmarking.
- Developers trust it for relative power trends, not absolute power measurements.
- Reviewers commonly note it’s good for comparisons, not for total system draw validation.
Is Intel Power Gadget still reliable in 2025?
Yes. Despite changes in chip design and telemetry standards, Intel Power Gadget continues to be updated to support newer CPUs. It remains a solid tool for developers, engineers, and testers who want lightweight but trustworthy CPU-level power monitoring.
Users running Intel Macs or Windows machines with 10th-gen to 13th-gen processors can expect stable performance and generally accurate readings when used under controlled conditions.
FAQs
1. Is Intel Power Gadget more accurate than HWMonitor or Open Hardware Monitor?
It’s more reliable for CPU power data on Intel chips because it uses official telemetry. However, HWInfo64 is still more feature-rich for system-wide diagnostics.
2. Does Intel Power Gadget support Intel’s latest hybrid-core architecture (P-cores and E-cores)?
Yes, it detects and reports on hybrid-core CPUs, though detailed per-core analysis may require additional tools like Intel’s own VTune or HWInfo.
3. Can Intel Power Gadget be used in Linux?
No, it’s only available for Windows and macOS. Linux users may use perf, turbostat, or rapl-based CLI tools instead.
4.How often does Intel Power Gadget update its readings?
The tool updates readings in real time usually every 100–250 milliseconds depending on system performance and load conditions.
Conclusion:
Intel Power Gadget is a reliable and reasonably accurate tool for measuring CPU-specific metrics like power draw, clock speed, and temperature, especially for Intel platforms.
While it isn’t a substitute for lab-grade instrumentation or full-system diagnostics, it performs impressively well within its intended scope.
For most developers, power testers, and hardware enthusiasts, it’s accurate enough to trust in daily use just be aware of its limitations and avoid using it as a one-size-fits-all power solution.
